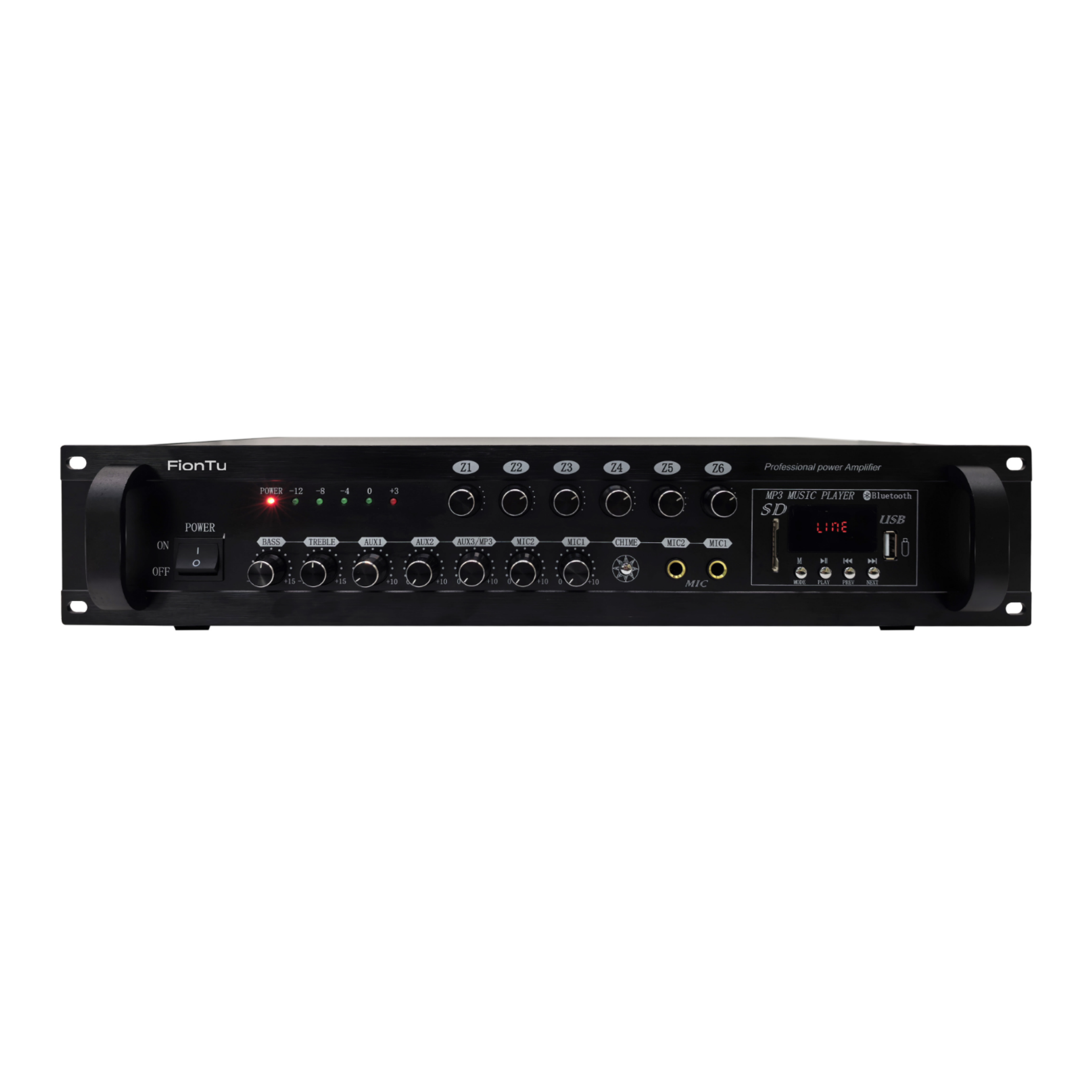

6-zone integrated amplifier FP4-G3360
This professional audio amplifier features a versatile design with multi-functional input sources, advanced noise suppression, and comprehensive safety protection.
Categories: PA speaker
- Sorry, this product cannot be purchased.
Description
Parameter
| Rated Power | 360W |
| Output | 70V, 100V, 4-16Ω, CH1-CH5 |
| Input Sensitivity/Impedance | MIC1, 2, 5mV/600Ω, unbalanced TS input; AUX1, 2, 3: 350mV/10kΩ, unbalanced RCA input |
| Output Sensitivity/Impedance | 1000mV/470Ω, unbalanced TS output |
| Overload Source EMF | MIC1, 2 , 3: >12dB, unbalanced TRS input; AUX1, 2, 3: >20dB, unbalanced RCA input |
| Tone (Bass) | ±10dB @ 100Hz |
| Tone (Treble) | ±10dB @ 10kHz |
| Frequency Response | 50-16kHz (+1dB, -3dB) |
| Signal-to-Noise Ratio | MIC1, 2: 66dB |
| AUX1, 2, 3 | 80dB Total Harmonic Distortion: 0.5% at 1kHz, 1/3 output power |
| Mute Function | MIC1 prioritizes other channels |
| Channel Crosstalk Attenuation | ≤50dB |
| Cooling | Front-to-back forced air cooling |
| Protection | Overheating, overload, and short circuit |
| Power Supply | AC220V, 60/50Hz |
| Weight | 12kg |
| Dimensions (W×H×D) | 480*385*100mm |
