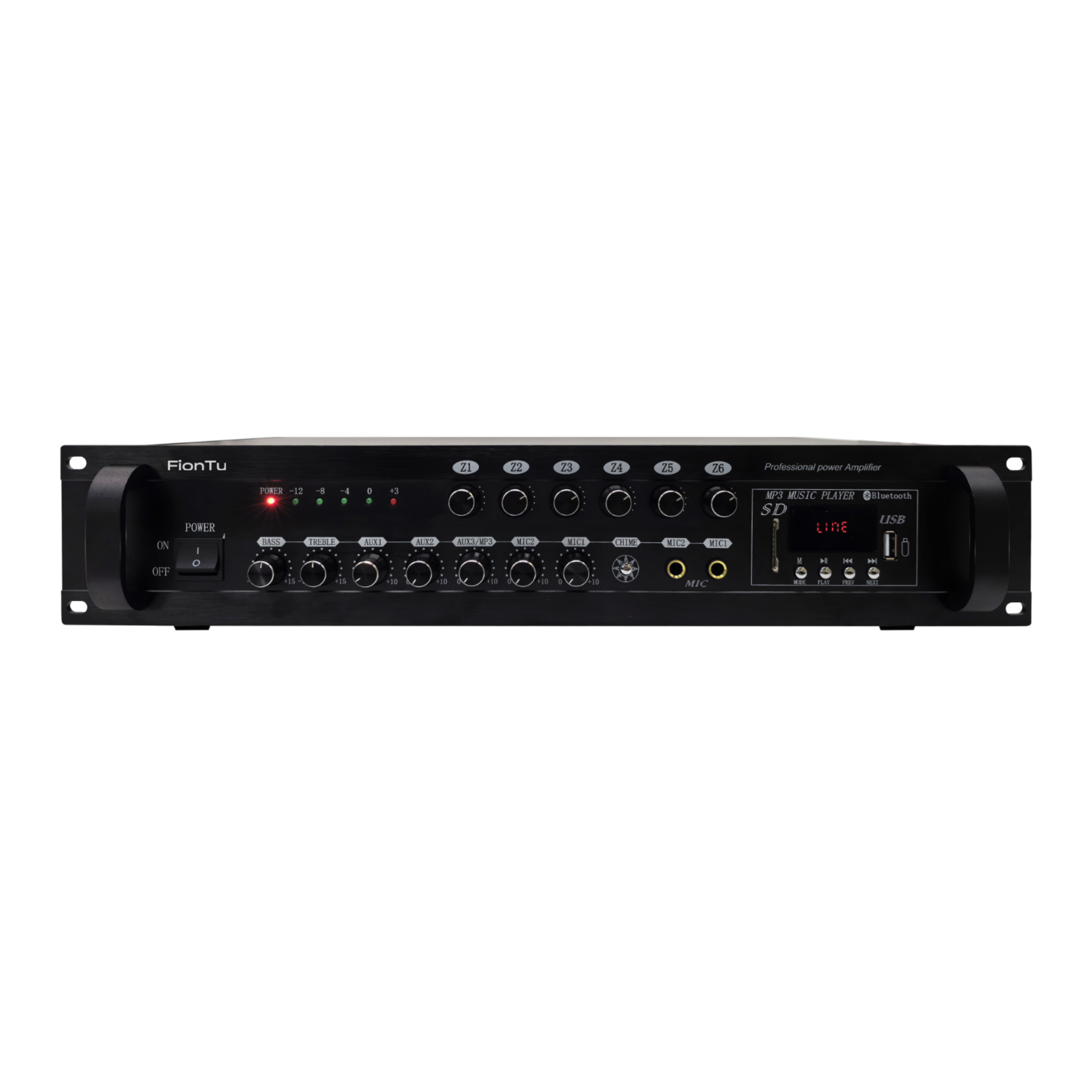

6-zone integrated amplifier FP4-G3180

- Professional audio amplifier with MP3, FM radio, and Bluetooth functionality. - Features advanced noise suppression, EQ controls, and multiple input/output options. - Includes comprehensive safety protections for reliable operation in harsh environments.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Standard chassis design, 2U aluminum alloy panel, integrated handle and ear mount design, suitable for cabinet or desktop installation
  • Professional noise gate controls output signal to suppress background music
  • One MP3 master volume knob for unified MP3 volume control, two-band parametric EQ knobs for adjusting bass and treble to enhance sound quality
  • Independent volume knobs for each line input and each microphone channel
  • Ding-dong prelude button automatically plays the prompt tone at maximum volume, with customizable one-touch alarm music
  • MP3 player capable of playing audio from USB flash drives and SD cards up to 32GB, Bluetooth functionality included
  • FM radio capable of receiving radio stations from 88-108MHz
  • 5 audio inputs, including 3 standard line inputs and 2 standard microphone inputs
  • One-channel audio output, loopable to the next amplifier's audio input
  • MIC1 has the highest priority and automatically mutes when a signal is input. Junction FETs perform priority conversion to ensure signal distortion during muting
  • Six-channel volume control, five adjustable levels per zone
  • 70V and 100V constant-voltage outputs, 4-16Ω constant-resistance outputs, six-channel constant-voltage outputs from CH1 to CH6
  • Real-time operating status indicators: three signal indicators, one protection indicator, one distortion indicator, and one power indicator
  • Line safe operating range protection ensures safe operation of the output load in harsh environments, including short circuits and overloads
  • Comprehensive thermal protection: When the unit temperature rises, the temperature servo circuit accelerates the fan, ensuring low fan noise
  • Peak negative feedback protection: When signal distortion, surges, or severe line voltage overvoltage occurs, the fan is automatically turned on. This effectively protects the amplifier
  • Integrated crossover compensation circuitry corrects high-frequency losses caused by line transformers, resulting in a flat signal spectrum and beautiful sound quality on the line voltage
  • High-octave bass cut circuitry utilizes low-cut technology with tone compensation to remove potentially hazardous ultra-low frequency components without sacrificing sound quality, ensuring safe operation of the boost system
    • Parameter
    Rated Power180W
    Output70V, 100V, 4-16Ω, CH1-CH5
    Input Sensitivity/ImpedanceMIC1, 2, 5mV/600Ω, unbalanced TS input; AUX1, 2, 3: 350mV/10kΩ, unbalanced RCA input
    Output Sensitivity/Impedance1000mV/470Ω, unbalanced TS output
    Overload Source EMFMIC1, 2, 3: >12dB, unbalanced TRS input; AUX1, 2, 3: >20dB, unbalanced RCA input
    Tone (Bass)±10dB @ 100Hz
    Tone (Treble)±10dB @ 10kHz
    Frequency Response50-16kHz (+1dB, -3dB)
    Signal-to-Noise RatioMIC1, 2: 66dB
    AUX1, 2, 380dB
    Total Harmonic Distortion0.5% at 1kHz, 1/3 output power
    Mute FunctionMIC1 prioritizes other channels
    Channel Crosstalk Attenuation≤50dB
    CoolingFront-to-back forced air cooling
    ProtectionOverheating, overload, and short circuit
    Power SupplyAC220V, 60/50Hz
    Weight9kg
    Dimensions (W×H×D)480*355*100mm
    Donwload
    FP4-G3180
