32 Intelligent interactive all-in-one machine FT-3203AT

This 32-inch Full HD touchscreen device features a 1920x1080 resolution LED-backlit display with a wide viewing angle and high contrast ratio. Powered by an RK3399 processor with 2GB RAM and 16GB storage, it supports 4K video, multiple media formats, and offers extensive connectivity including WiFi, Bluetooth, Ethernet, USB, and HDMI. Additional features include VESA wall mounting, a front camera, dual 3W speakers, and multi-language OSD.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.263,H.264,RV etc.,support 4K video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configuration power adapter 12V/5A, instruction manual, desktop stand
Parameter
System
CPUDual-core A72+quad-core A53, RK3399
RAM2GB
Memory16GB
Operating systemAndroid 7.1/9.0
Touch screen10-point capacitive touch

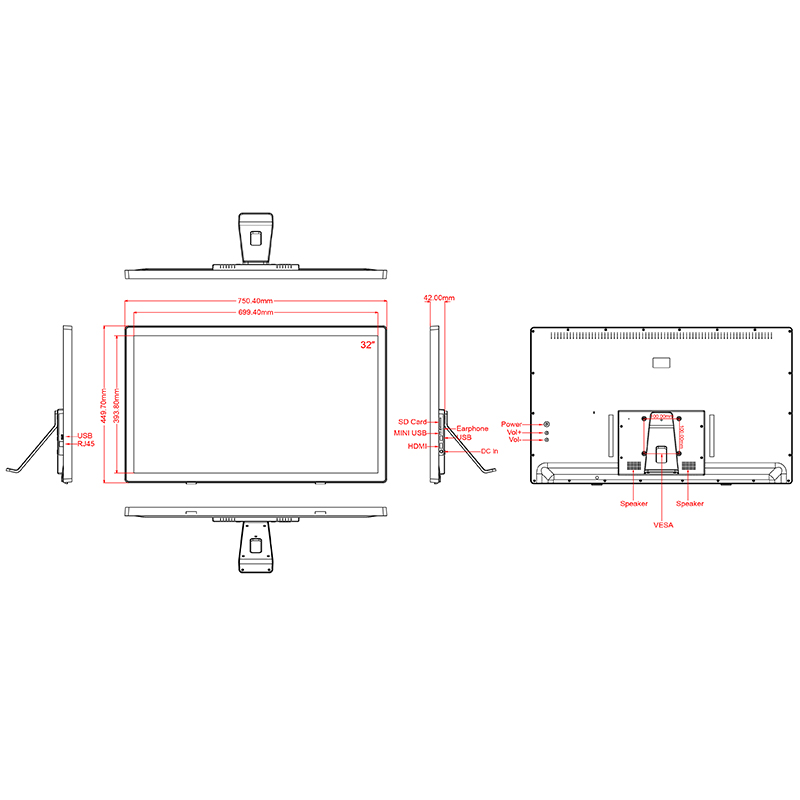

Single machine size LxWxH (mm)750.4*449.7*42
Single machine weight8.5KG
Color box size LxWxH (mm)862*135*555
Color box weight11.55KG
Outer box size 1cps LxWxH (mm)880*150*575
Outer box weight11.55KG
Display
LCD screen32 full HD screen, LED backlight
Resolution1920*1080
Viewing area698.4 (H) x 392.85mm (V)
Display modeNormally black
Viewing angle89/89 (H), 89/89 (V)
Contrast3000
Brightness250cdm2
Screen ratio16:9
Network
WiFi802.11b/g/n
BluetoothBluetooth 4.0
Ethernet100M/1000M network port
Interface
Card readerSupport SD/MMC card
USB OTGMini USB OTG
USB HostUSB 3.0
USB Hostx2USB 2.0
Power inputDC12V power input
RJ45Ethernet interface
HDMIHDMI output
Headphones3.5mm headphones
Otherfunctions
Power consumption50W
Camerafront 200W

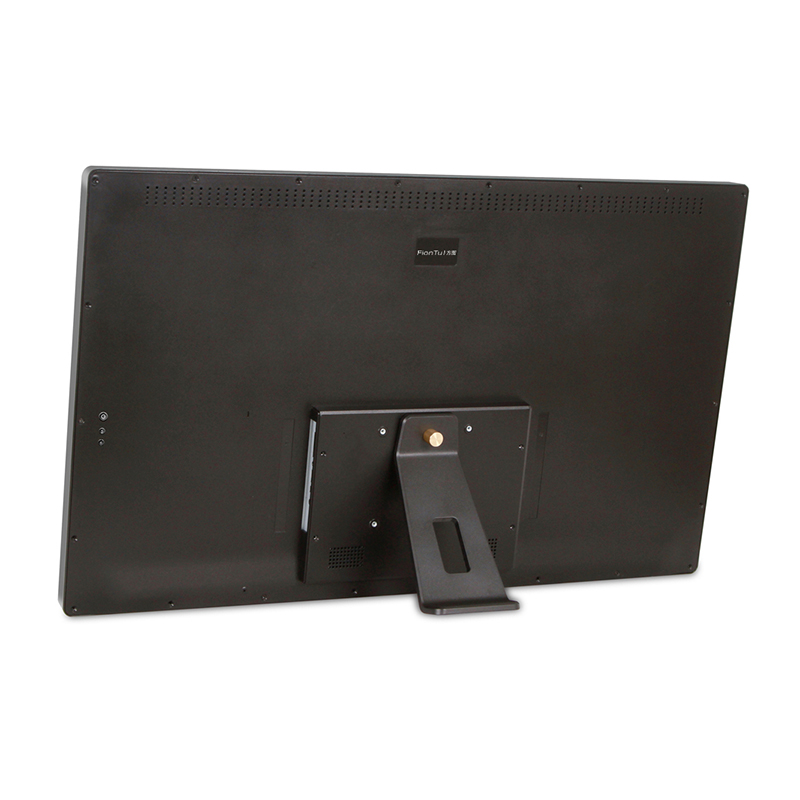

Wall mountVESA, 100x100mm
Speaker2*3W
OSD languageChinese and English multi-language OSD
 Working temperature0--40 degrees
Donwload
FT-3203AT
