24 Intelligent interactive all-in-one machine FT-2402A

This 24-inch Full HD touchscreen device features a 1920x1080 resolution LED-backlit display and an RK3399 processor with 2GB RAM and 16GB storage, running Android 7.1/9.0. It supports 4K video playback, multiple media formats, and provides extensive connectivity options including WiFi, Bluetooth, Ethernet, USB, and HDMI. Additional features include VESA wall mounting, a front camera, dual 3W speakers, and multi-language OSD.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.263,H.264,RV etc.,support 4K video format
  • Support MP3/WMA/AAC etc. audio format
  • Support jpeg picture format
  • Configuration power adapter 12V/4A, instruction manual, round desktop stand
Parameter
System
CPUDual-core A72+quad-core A53,RK3399
RAM2GB
Memory16GB
Operating systemAndroid 7.1/9.0
Touch screen10-point capacitive touch

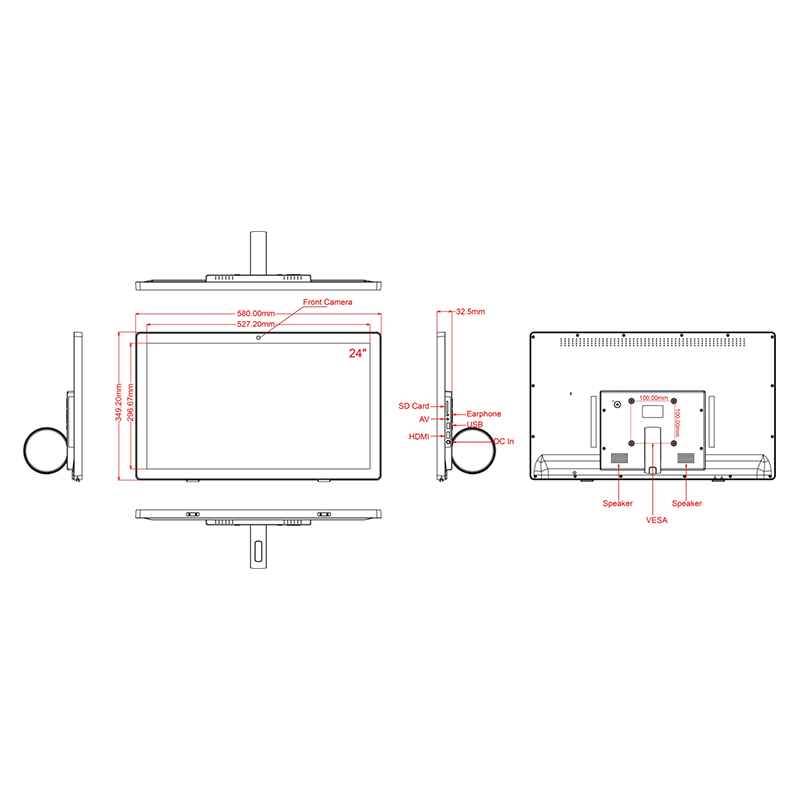

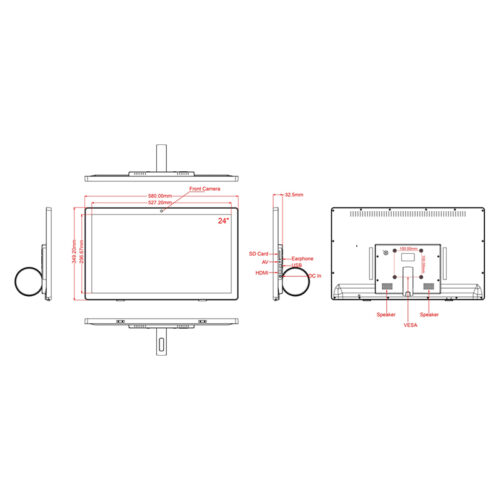

Single machine size LxWxH (mm)580*349.2*32.5
Single machine weight4.8KG
Color box size LxWxH (mm)655*115*455
Color box weight6.6KG
Outer box size 2cps LxWxH (mm)670*250*480
Outer box weight13.2KG
Display
LCD screen24 full HD screen, LED backlight
Resolution1920*1080
Viewing area527.04 (H) x 296.46 mm (V)
Display modeNormally black
Viewing angle89/89 (H), 89/89 (V)
Contrast1000
Brightness250cdm2
Screen ratio16:9
Network
WiFi 802.11b/g/n
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M network port
Interface
Card reader Support SD/MMC card
USB OTG Mini USB OTG
USB Host USB 3.0
USB Hostx2 USB 2.0
Power input DC12V power input
RJ45 Ethernet interface
HDMI HDMI output
Headphones 3.5mm headphones
Otherfunctions
Power consumption 35W
 Camera front 200W

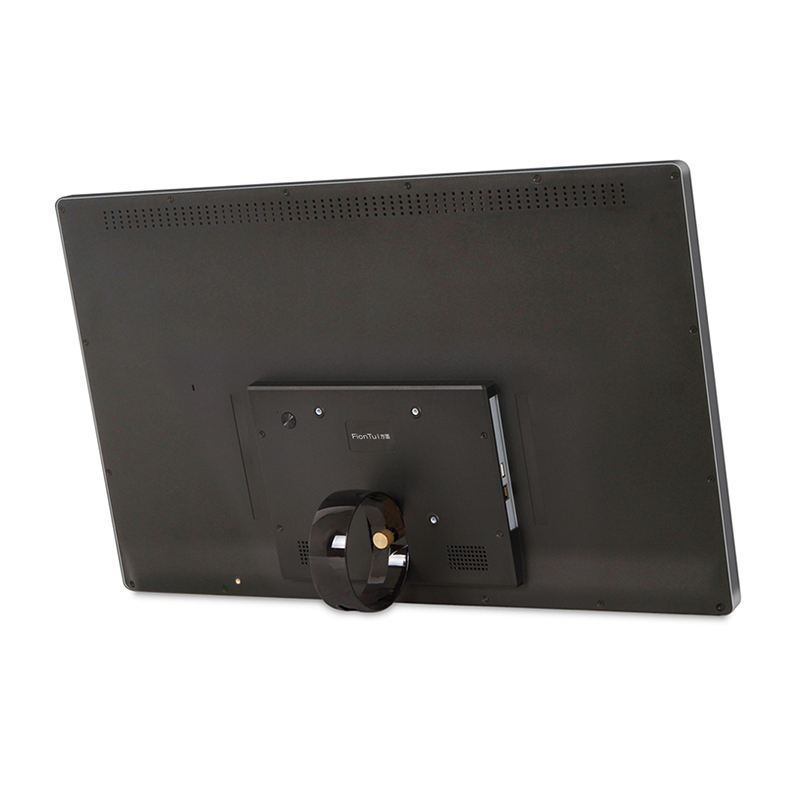

Wall mount VESA, 100x100mm
Speaker 2*3W
OSD language Chinese and English multi-language OSD
Working temperature 0--40 degrees
Donwload
FT-2402A
