15.6 Intelligent Interactive All-in-One Machine FT-1562A

This 15.6-inch touchscreen device features a 1920x1080 resolution display, powered by an RK3399 processor, 2GB RAM, and 16GB storage, running Android 7.1/10.0. It supports 4K video playback, multiple media formats, and offers versatile connectivity, including WiFi, Bluetooth, Ethernet, POE, and HDMI output. Additional features include a built-in microphone, wide-angle camera, dual speakers, and multi-language OSD.
Categories:
Get Quote
Category Tag
Description
  • Support MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc., support up to 4K video
  • Support MP3/WMA/AAC etc. audio formats
  • Support jpeg image format
  • Configure power adapter 12V/2A, instruction manual
Parameter
System
CPURK3399 Dual-core A72+quad-core A53
RAM2GB
Memory16GB
Operating systemAndroid 7.1/10.0
Touch screen10-point capacitive touch

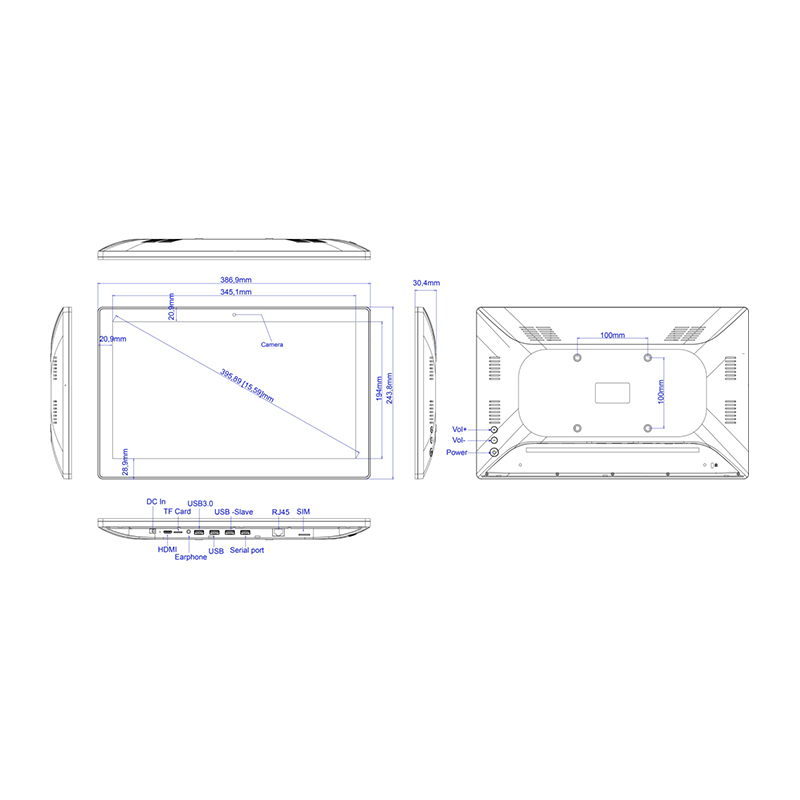

Single machine size LxWxH386.9*243.8*30.4(mm)
Single machine weight1.38KG
Color box size LxWxH (mm)475*85*295
Color box weight2.4KG
Display
Touch screen10-point capacitive touch
LCD screen15.6 high-definition wide viewing angle screen
Resolution1920*1080
Contrast800
Brightness250cd/m2
Screen ratio16:9
Network
WiFi802.11b/g/n
BluetoothBT4.0
Ethernet10M/100M network port
Interface
TF cardTF card
USBUSB slave, connected to computer
USB HostUSB 2.0 host USB 3.0 host
Serial portUSB for serial port (RS232 format)
HDMIHDMI output, maximum output 4K
Power jackDC power input
Headphone3.5mm stereo headphone output, with microphone input
RJ45RJ45 Ethernet interface (optional POE function IEEE802.3at, POE+, class 4, 25.5W)
Otherfunctions
Microphonesupport microphone
Colorblack
Speaker2*2W
Camerawide angle 200W
OSD languageChinese, English and other multi-language OSD operation
Working temperature0--40 degrees
Donwload
FT-1562A
