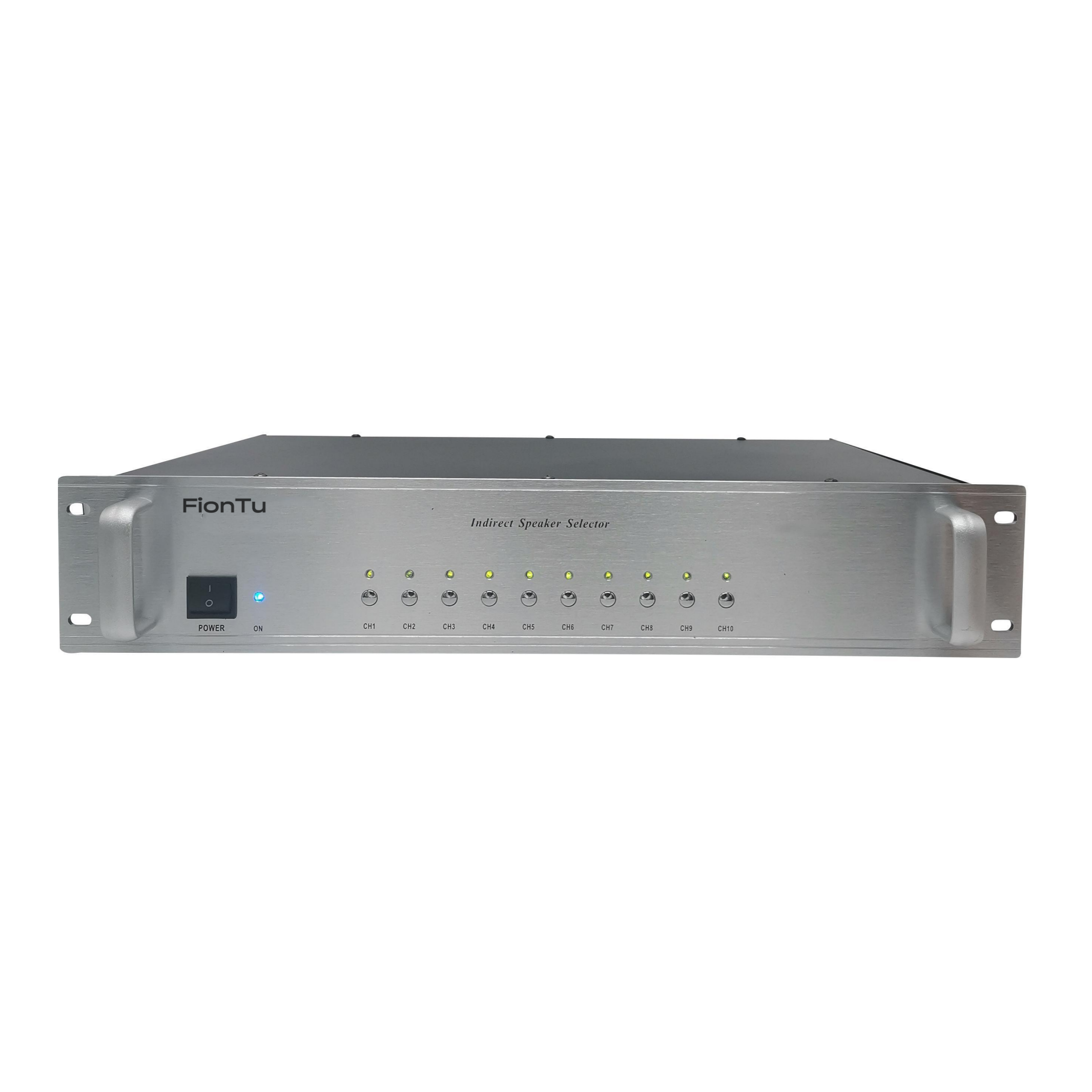

10-way partition matrix FP4-C9802

The device features four power inputs, A/B zone grouping with 2000W max per group, independent zone selectors, and dual-relay control for interference-free operation. It supports short-circuit and broadcast signal forced trips, ensuring reliable performance.
Categories:
Get Quote
Category Tags , , , ,
Description
  • Four power inputs with indicator lights indicating zone operating status
  • Zones are divided into A/B groups. Group A manages zones 1-5, and Group B manages zones 6-10. Each group has a maximum output power of 2000W
  • 10 independent zone selector switches allow for flexible switching of zones without interference
  • One short-circuit control signal input triggers a forced trip to activate all zones
  • One broadcast signal input triggers a forced trip to activate all zones
  • The device utilizes a dual-relay simultaneous dual-trip control circuit with channel isolation ≥80dB, eliminating crosstalk and other issues
  • Standard 2U cabinet design with sophisticated craftsmanship, exuding a high-end aesthetic
    • Parameter
    Power supplyAC220 ± 550-60Hz
    Power consumption28W
    Dimensions480*330*90mm
    Weight5kg
    Donwload
    FP4-C9802
