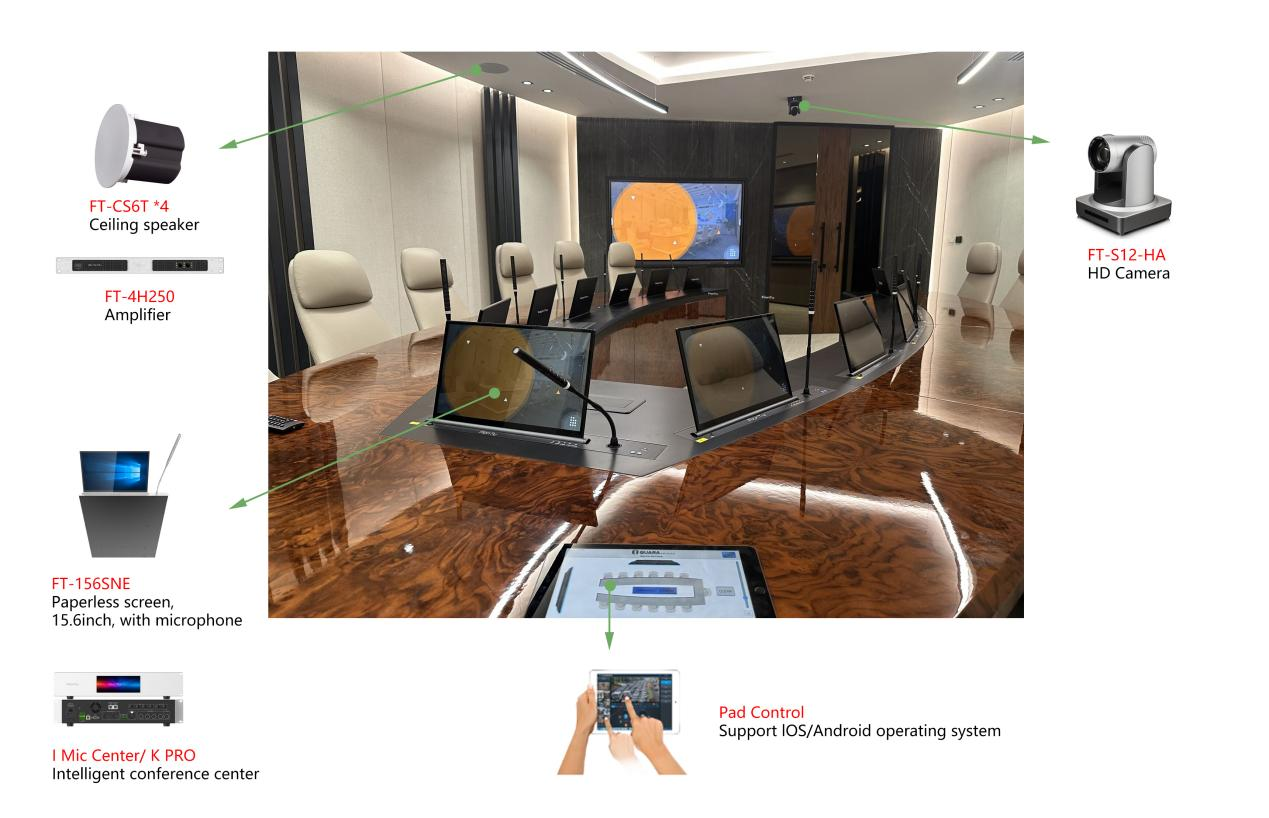

Real Case Analysis in Saudi Arabia: Quara Holding
| No. | Description | Model | Picture |

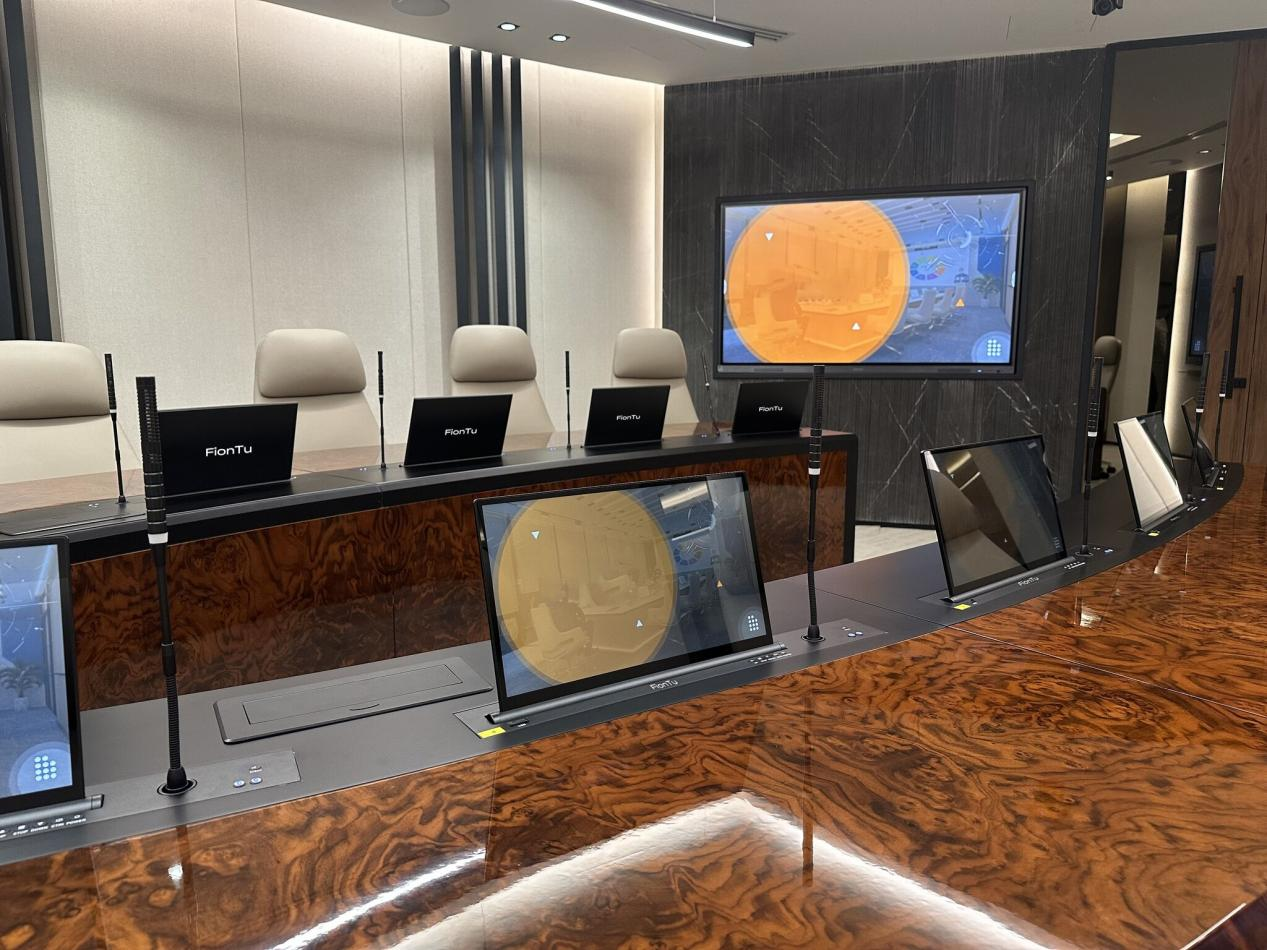

| Paperless Conference system | |||
| 1 | Intelligent conference center | I Mic Center/ K PRO |  |
| 2 | Feedback suppressor | FT-AFC0602 |  |
| 3 | Conference system male-male 20m main cable | MM20-7.8-6P |  |
| 4 | Paperless screen, 15.6inch, with microphone | FT-156SNE |  |
| 5 | 6-core conference shielded special T-type cable (male-male-female) | MMF03-6P |  |

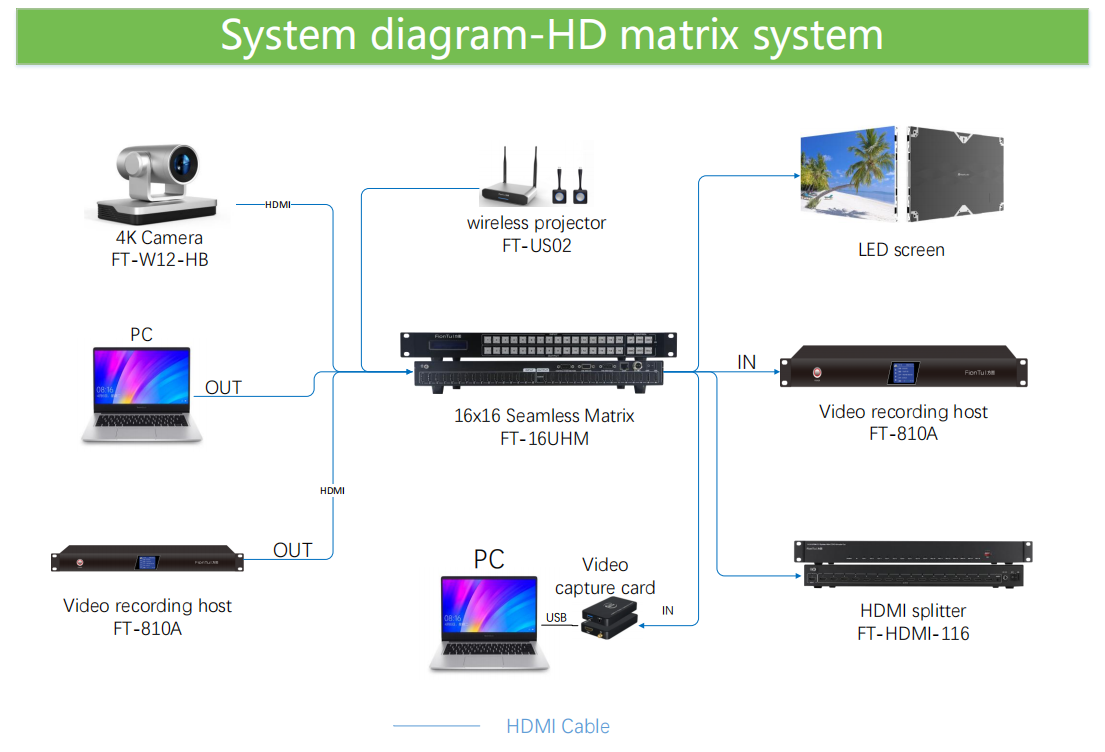

| Cenreal Control and Video Matrix System | |||
| 6 | Programmable intelligent central control host | FT-CM16-20 |  |
| 7 | Host programmable logic software | FT-TBLN |  |

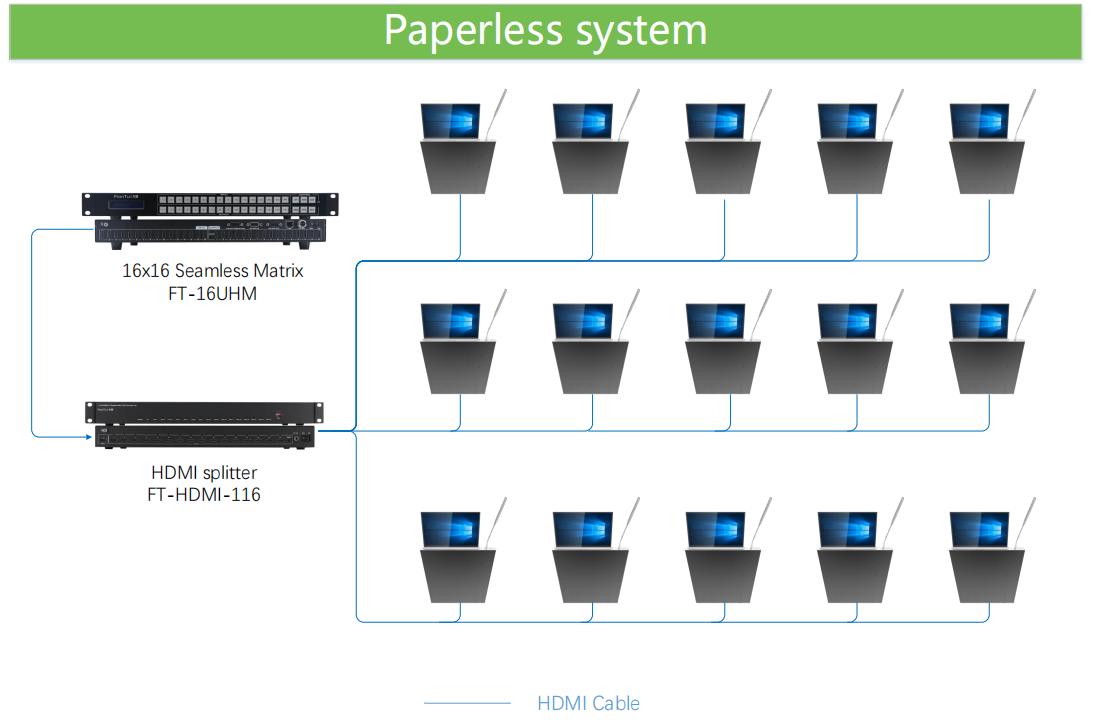

| 8 | 16×16 Seamless Matrix | FT-16UHM |  |
| 9 | HDMI splitter | FT-HDMI-116 |  |
| 10 | 70m HDBT network transmitter | FT-HDBT70-T |  |
| 11 | 70m HDBT network receiver | FT-HDBT70-R |  |
| 12 | Wireless projector | FT-US02 |  |
| 13 | Timing power supply | FT-KS8 |  |
| Recording System | |||
| 14 | Conference recording host | FT-810A |  |
| 15 | HD camera | FT-S12-HA |  |
| 16 | Video capture card | CM630 |  |

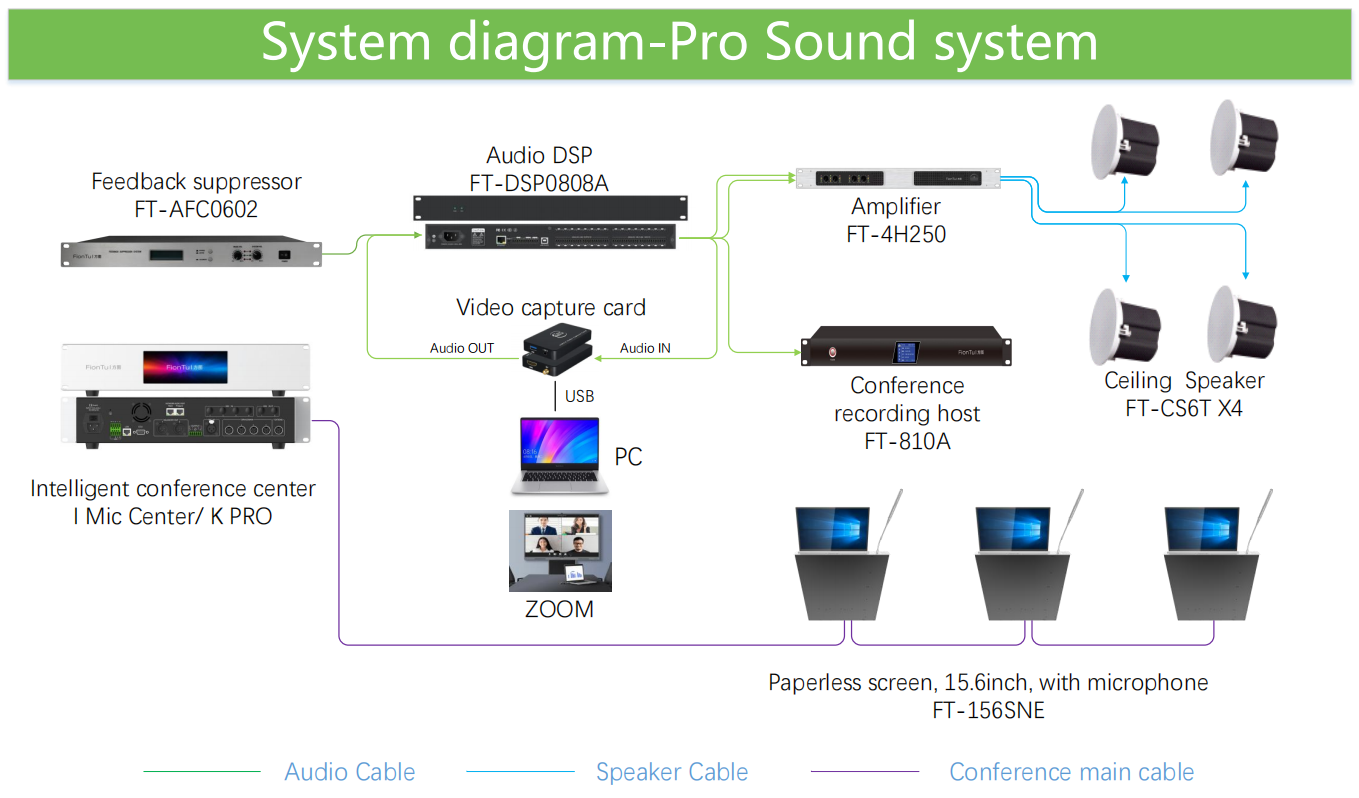

| Sound System | |||
| 17 | 8 input and 8 output digital audio matrix processor | FT-DSP0808A |  |
| 18 | Amplifier | FT-4H250 |  |
| 19 | Ceiling speaker | FT-CS6T |  |
System Highlights:
① Hardware Screen Sharing:
Hardware screen sharing is more efficient and economical than software-based screen sharing available on the market because no MINI PC is required.

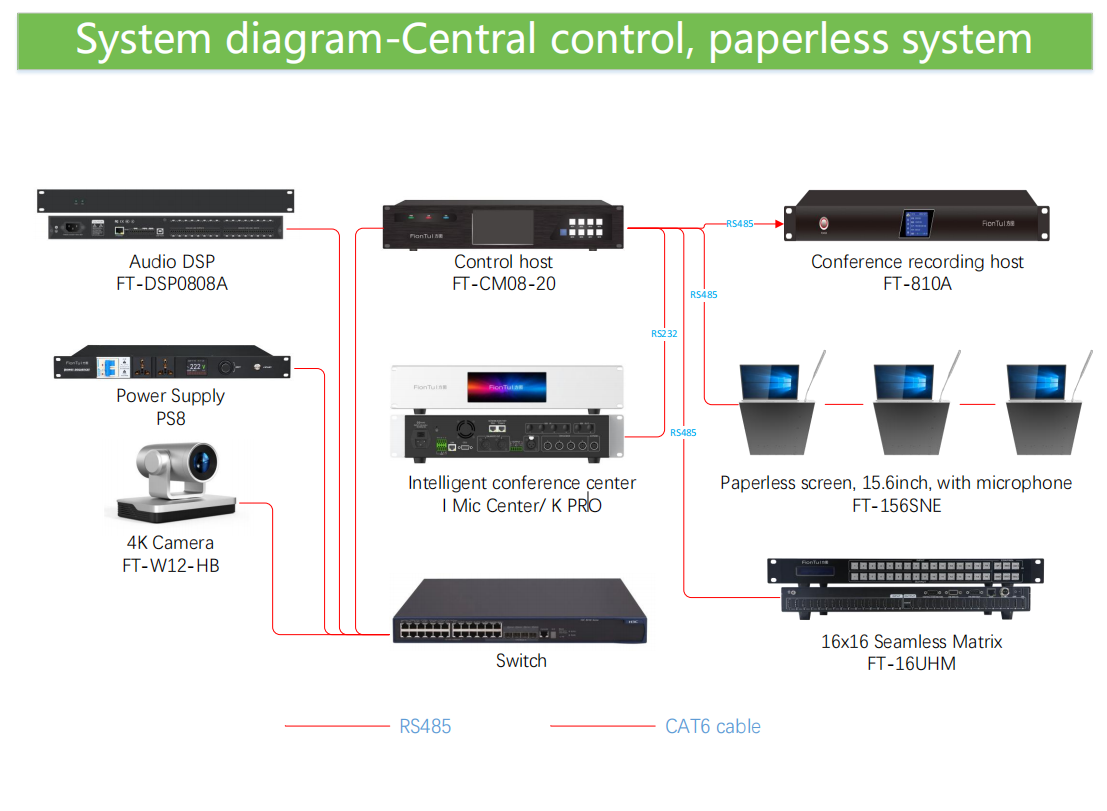

② Central Control System Can manage
- The ups and downs of paperless screens (retractable LED screen)
- Volume
- Start and stop recording
- Camera tracking for the opened desktop microphone
- Video matrixswitching
- Room lighting
Detailed Function Analysis:

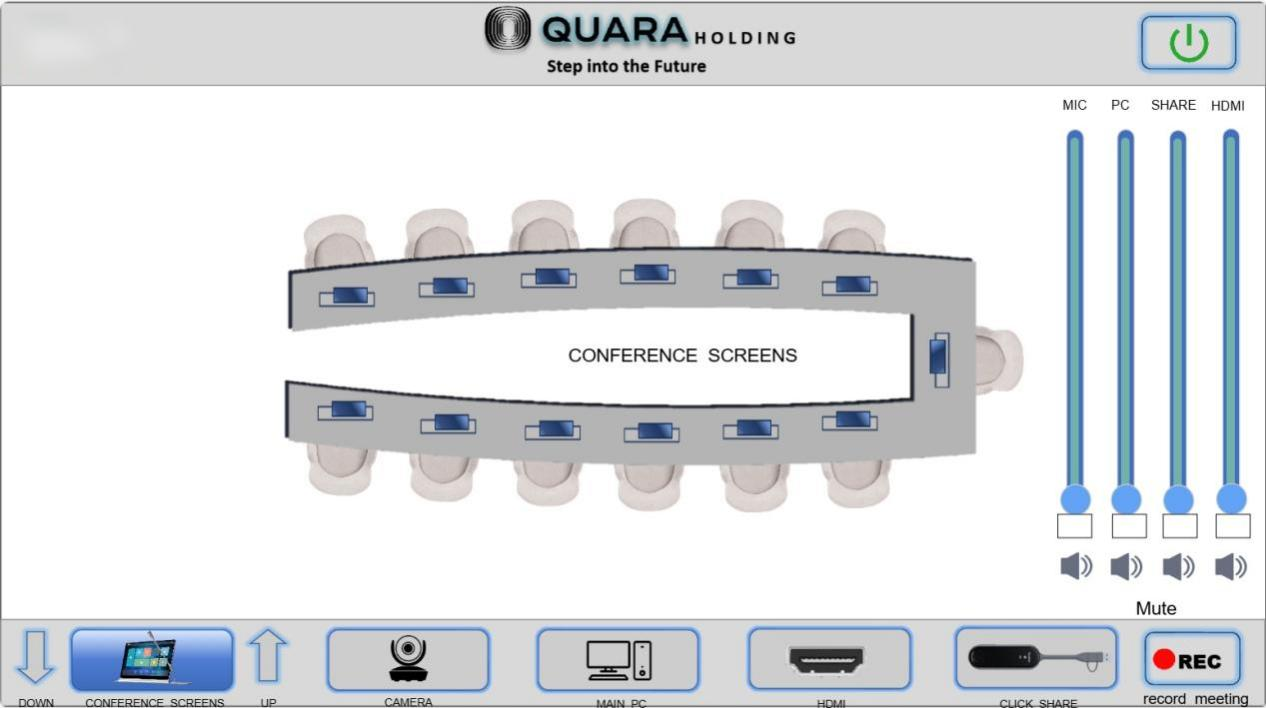

- The ups and downs of the screens can be controlled individually or with a one-touch operation.
- Recording Button: Oneclick to start and stop recording.
- The volume of MIC, PC, CLICK SHARE and HDMI can be controlled independently.

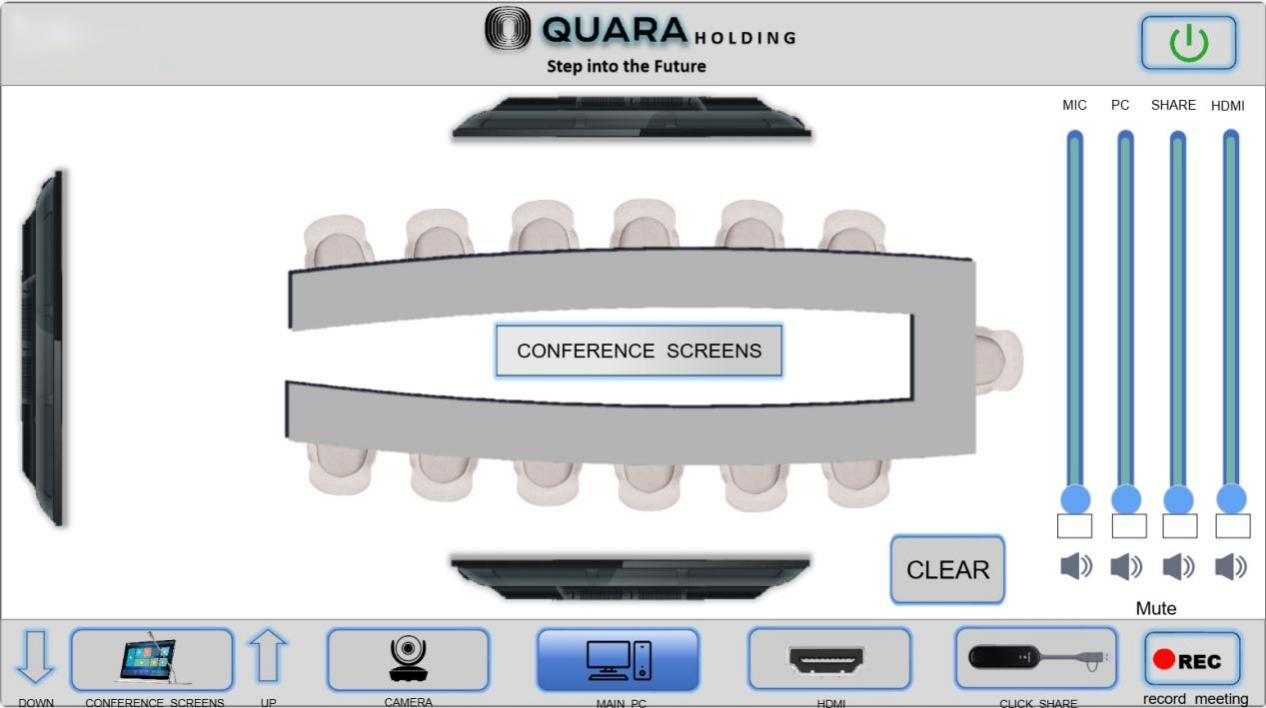

- On site, there are three conference LED screens. Any screens can be used to pick and present the display from the MAIN PC, CLICK SHARE, and HDMI. The first-in, first-out rule applies to all three screens.
- Press the “CLEAR” button in the lower right corner to remove the image.

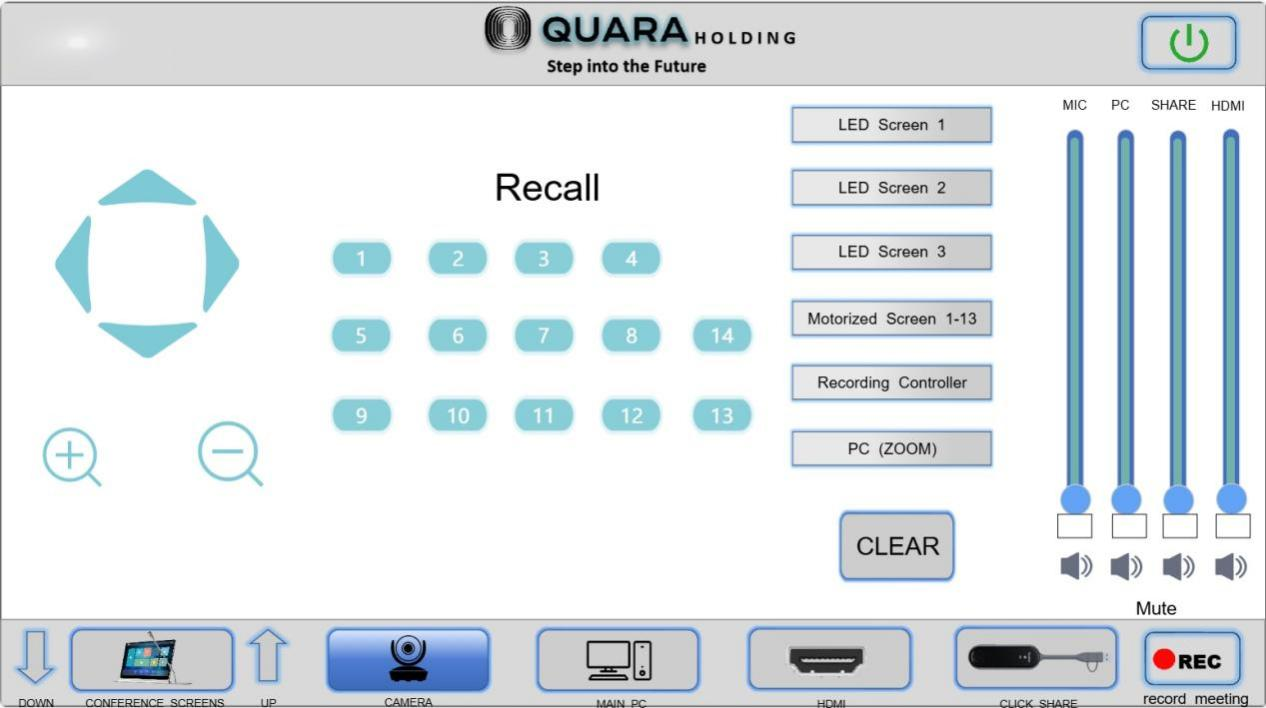

- Camera Functions:
- Control zoom in and zoom out.
- Set preset positions for microphone-activated camera tracking. The camera picture can be transmitted through the video matrix to the paperless retractable LED screen, the three large conference LED screens, the recording controller, and the PC (for Zoom/Teams/Webex video conferencing).
- A one-click function enables clearing the camera picture and stopping transmission to any device.
